Sealing Precision: The Importance of Gearbox Seals in Industrial Gear Applications

Industrial machinery runs on gears and will continue to rely on these machines for the foreseeable future due to their high-efficiency energy-transferring capabilities. Gear assemblies, which include two or more interlocking gears and shafts, power the motors, actuate the fixturing, facilitate material handling, and control timing, among other vital tasks. Highly complex gear assemblies, such as those used in modern industrial processes, are precision-engineered to provide optimal torque for their given process and can demand tolerances down to the micron. To ensure smooth operation, these essential components are protected within specially designed housings and behind the gearbox shafts are seals that keep lubricant in, contaminants out, and every component in perfect alignment.

The Role of Industrial Gearbox Seals

Of all the components that make up industrial gear assemblies, the gearbox seals play the most crucial role in ensuring optimal performance, extending equipment lifespans, and reducing maintenance costs. Using poor-quality seals or the wrong seal type and machinery failure is only a matter of when. Multimillion-dollar production lines are easily taken down by a single bad seal.

When gears turn, shafts spin, and bearings roll around, they push and rub against each other. Without adequate lubrication, this high-speed friction of metal against metal heats the components, and the combined stressors can cause misalignment, broken teeth, and fused substrates. Lubricating the gear assemblies is the best solution to getting the most out of industrial equipment, but care must be taken to avoid either leaking or contaminated lubricant.

As gearboxes lose lubricant or debris works its way into the assembly, the tight-toleranced inner workings will experience accelerated wear, causing the equipment to lose efficiency and accuracy, consume additional power, and eventually require extended operational downtime for costly repairs when the heat generated causes the components to distort and seize. To effectively prolong the lifespan of industrial machinery their complex gearboxes require high-quality and specialized seals uniquely designed to keep industrial lubricants where they belong.

Gearbox Seals for Every Configuration

Gear assemblies used in industrial applications come in a wide variety of configurations and specifications and, as such, require multiple types of seals. Depending on the assembly, gearbox seals may include:

  • Radial Shaft (Lip) Seals -input and output shafts
  • O-Ring Seals -static joints, service ports/inspection covers

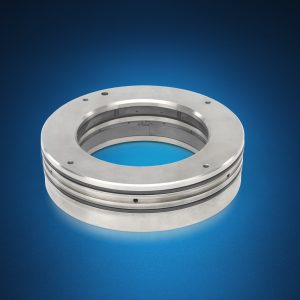

  • Circumferential Seals -high-speed gear interfaces
  • Mechanical Face Seals -input and output shafts
  • Labyrinth Seals or Bearing Isolators -bearing assemblies
  • Contact Lip Seals -bearing assemblies

In some cases, such as when high-speed performance is critical, space constraints impede standard designs, or harsh operating environments demand more rugged solutions, gearbox seals may need to be custom-designed and manufactured to achieve optimal results.

Choosing the Right Seal

Due to the critical nature of gearbox seals, choosing the correct seal type for each component can be complex. Factors such as maintenance intervals, environmental conditions, operating temperature, pressure, and speed all influence which seal is best for each application. Don’t risk catastrophic equipment failures! Enlist the experts at Stein Seal Industrial today and let us put our seal technology expertise to work in developing the best solutions for your industrial gearbox sealing requirements.

Industrial Seals in Submarines: A Deep Dive

The United States commissioned its very first military submarine on April 11th, 1900. In 1969, the U.S. Congress voted to recognize the significance of that day by declaring April 11th as annual National Submarine Day. As we approach the date this year, submarines have become a high priority in the military, where an intense effort is underway to ramp up production on the next generation of underwater warships.

With the goal of finishing one Columbia-class and two Virginia-class submarines every year, beginning in 2028, our military has its work cut out for it. Much of the engineering advancements required will come from the private sector.

Stein Seal is one of the companies joining the effort by inventing technologies to improve the safety, efficiency, and capabilities of the next nuclear submarines.

Impossible Is Where It Starts.

The challenge of carrying our own atmosphere with us beneath the waves and into the depths of the oceans presents a staggering array of obstacles. Under the sea, there are no escape hatches, no lifeboats. No abandoning ship. With essentially no room for error, how do these incredibly complex machines manage to perform so dependably, dive after dive, for years on end? Here’s a hint:

It’s the Seals.

Submarines are subjected to extreme ranges in pressure, vast and rapid temperature swings, and constant exposure to highly corrosive seawater. Keep water out and air in while protecting critical systems from leaks, corrosion, and cataclysmic mechanical failure…that is the domain of the mechanical seal. You can find many kinds of seals all over a modern submarine. Let’s take a look at them and what they do.

Not Just Any Seal Will Do.

Submarines rely on several specialized sealing technologies to maintain operational integrity in the underwater environment. These seals must be able to withstand intense hydrostatic pressures and mechanical stresses without failing. Some of the most critical applications of seals in submarines include:

Shaft Seals – These seals prevent seawater from entering the submarine through the propulsion shafts. They are often mechanical face seals or lip seals designed to handle high-pressure differentials and rotational motion.

O-Ring Seals – Used throughout the submarine in hydraulic systems, airlocks, and hatches, O-rings create tight seals between static and dynamic components to prevent leaks and pressure loss.

Bulkhead Seals – These provide watertight barriers between different compartments in the submarine, ensuring that in the event of a hull breach, flooding is contained to a specific area.

Hydraulic Seals – Essential for the proper function of periscopes, diving planes, and other movable components, hydraulic seals prevent leaks within the high-pressure hydraulic systems that control many of the submarine’s critical operations.

The Gearbox Seal: Propelling Possibilities

All the seals on a submarine are important, but without the gearbox seal, there would be no submarine at all. The propulsion gearbox transmits power from the turbine to the drive shaft, enabling the submarine to move through the water with precision. The gearbox seal safeguards the propulsion system, without which a submarine can go in only one direction: down. Given the complexity of this system, any failure in the gearbox seal could lead to serious consequences.

Gearbox Seal Functionality

Gearbox seals in a submarines serve multiple functions:

Protect Against Contaminants – They keep saltwater, dust, and other atmospheric elements away from the oil being used for lubrication of the gearbox components.

Maintain Pressure – The seals ensure that pressure differentials within the propulsion system do not cause leaks or mechanical stress.

Reduce Friction and Wear – By maintaining the purity of the lubrication, gearbox seals minimize friction between moving parts, extending the operational life of the turbine and other mechanical components.

Designing the Right Gearbox Seal for Your Sub

The intense operational conditions faced by submarines necessitate that a gearbox seal must be designed for:

High Pressure – The pressure on the outside of a submarine rapidly increases as it descends into deep waters. Gearbox seals must resist these pressure differentials to function effectively.

Temperature Differentials – Even underwater, the propeller shaft creates tremendous heat through friction. This heat, surrounded by the frigid waters of the deep ocean, can result in thermal expansion/contraction of the metal elements. Absorbing that movement without losing its integrity is the job of the gearbox seal.

Chemical Resistance – Gearbox seals must be resistant to the corrosive effects of saltwater, as well as lubricating oil and other chemicals.

Other Forces– Though they appear silent and smooth when you see them in the movies, submarines are massive mechanical beasts with many systems operating simultaneously. The vibrations, shocks, and physical stresses are extreme and somewhat unpredictable. Gearbox seals must be robust enough to withstand the maximum dynamic forces without weakening.

Innovations in Gearbox Seal Tech

Modern advancements in materials science have resulted in more durable gearbox seals. Today, state-of-the-art examples are greatly expanding the possibilities of what our subs can do. Here are some examples:

  • Metal alloys like Inconel and titanium–greater durability in extreme pressure and temperatures
  • Hybrid sealing system– improved flexibility and strength
  • Advanced polymers–higher resistance with lower friction

Submarine Seal Expertise

Industrial seals are the unsung heroes of submarine operations, ensuring reliability, safety, and efficiency in some of the most challenging conditions imaginable. Stein Seal Industrial has been developing submarine seal technology for decades. Our seals help submarines navigate the depths with confidence. As technology advances, so too does the performance and durability of our submarine seals, ensuring that these critical components continue to meet the demanding requirements of modern naval operations.

Find out more about the United States Navy’s unprecedented effort to completely transform its nuclear-powered submarine fleet and maintain its critical undersea advantage at WeBuildSubmarines.com

https://youtu.be/0dum7Gr5tKs?si=5yZzdUFIaQmalRx9

NATIONAL SUBMARINE DAY IS APRIL 11TH.

Efficiency Unleashed: How Turbine Seals Contribute to Power Plant Performance

Whirled Domination: How Turbine Seals Help Power the Planet

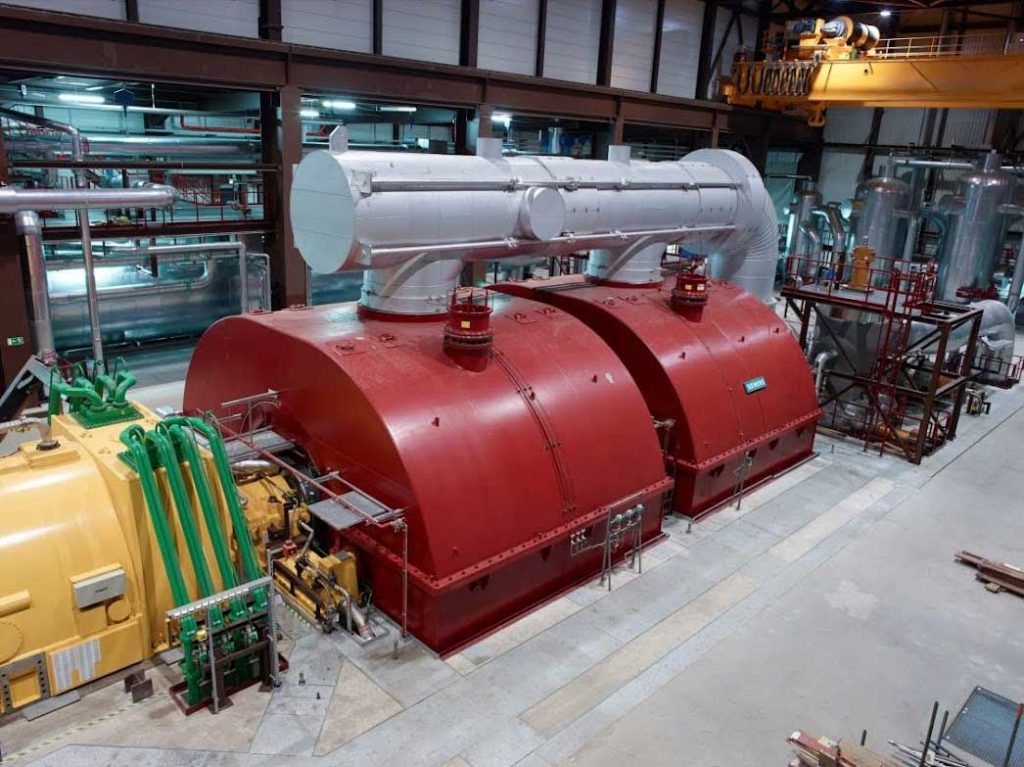

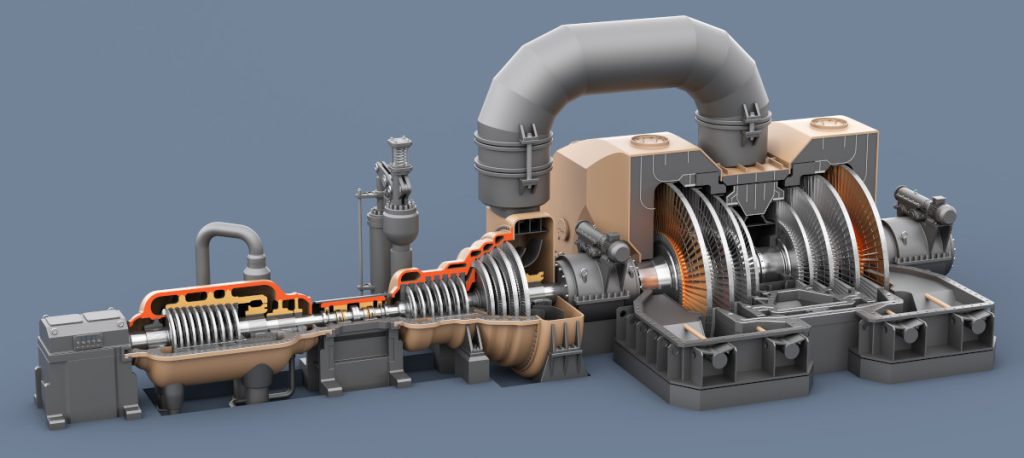

Power plants, whether gas- or steam-powered, make use of turbines to convert natural kinetic energy into usable electrical power. And, wherever there is a turbine, there is likely to be at least one mechanical seal involved.

Stein Seal Industrial makes many of the seals that maximize the efficiency of turbines that feed the grid. In this blog, we’ll tell you about some of those seals, what they’re called, how they’re used, and why it matters.

Where the Seals Are: Turbine Seals in Power Plants

Turbine seals are located strategically throughout the power plant’s infrastructure. In steam and gas turbine systems, they are deployed to control leakage and help maintain efficient operations. Various types of turbine seals will typically be found in between rotating and stationary components, shaft seals at the entry and exit points of the turbine shaft, end seals at the high-pressure and low-pressure ends of the turbine, bearing seals around the turbine’s bearings, and exhaust and casing seals at exhaust points to control residual steam leakage and improve backpressure conditions in the turbine.

Each of these seals plays a crucial role in ensuring optimal turbine performance, reducing energy losses, and enhancing the reliability of the power generation process.

Efficiency Unleashed: How Turbine Seals Contribute to Power Plant Performance

A variety of mechanical seals play a critical role in the functioning of power plants by ensuring the reliable operation of steam, gas, hydroelectric, wind, and binary-cycle turbines. Primarily, turbine seals prevent leakage, protect internal components from the ingress of dust and other contaminants, enhance the system’s resistance to extreme temperatures, and generally increase efficiency while reducing the maintenance burden.

  1. Leak Prevention: Turbine seals create a barrier between high-pressure and low-pressure areas, reducing leakage of steam, air, or gas, and maintaining optimal efficiency.
  2. Component Protection: Seals prevent damaging contaminants, such as dust, dirt, or moisture, from entering the turbine system, helping prolong the life of critical components.
  3. Thermal Resiliency: Turbine seals can accommodate the expansion and contraction that occurs with thermal fluctuation. This permits proper fit and function under a wider range of operating temperatures.
  4. Improved Efficiency:  By limiting leakage, seals help maximize the energy conversion process, improving overall turbine performance and reducing energy waste.
  5. Reduced Maintenance Costs: By minimizing wear and tear on turbine components, seals contribute to longer maintenance intervals and reduced downtime to the benefit of the bottom line.

Common Types of Turbine Seals

Turbine seals most commonly found in power plants include labyrinth seals, brush seals, and carbon ring seals. Each type has its signature strengths, as befitting the specific applications for which it was designed.

Labyrinth Seals

In the labyrinth seal, a series of interlocking fins (or teeth) line a complex, winding path that is the only way out for any would-be leaks. This non-contact design makes labyrinth seals ideal for applications with high pressure differential.

Brush Seals:

In a brush seal, flexible bristles are held against the turbine’s rotating shaft. Though they make constant physical contact with the shaft itself and can deliver better leak prevention than the labyrinth seal, especially in cases of shaft misalignment.

Carbon Ring Seals:

A carbon ring is held to the shaft through friction, forming a tight seal. These seals excel in high-temperature/ high-pressure systems like steam turbines. Carbon seals and labyrinth seals are often used together for even higher performance.

Installation Errors Leading to Seal Failure

Mechanical seals are complex instruments with many parts. They operate across numerous industries and are often required to perform in extreme environments where harsh chemicals, extreme temperatures and pressure differentials, and other forces can challenge even the most robust mechanisms.

Seals can fail for a multitude of reasons. Inevitably, however, nearly every seal failure is caused by human error. From design to installation, maintenance, and operation, a seal is ultimately nothing more than a sum of the efforts and decisions of those who create it and put it into use. A tiny miscalculation, shortcut, or deviance from known parameters is likely to adversely affect performance and/or durability.

In this series of articles, we’ll take a look at the most common errors that lead to seal failure, beginning with mistakes that happen during installation.

Improper Face Loading

  • Excessive or insufficient compression of the seal faces can lead to uneven wear, overheating, or inadequate sealing.
  • Incorrect spring tension adjustment can also cause the seal to fail prematurely.

Incorrect Shaft Preparation

  • Burrs, scratches, or contaminants on the shaft or sleeve can damage the seal during installation or compromise the sealing surface.
  • A shaft that is not cleaned properly can introduce debris into the seal assembly.

Seal Orientation Issues

  • Installing the seal components in the wrong orientation, such as reversing the rotating and stationary faces, can prevent the seal from functioning as intended.
  • Failure to align the seal faces correctly can result in leaks or uneven wear.

 Proper Lubrication

  • Some mechanical seals require lubrication during installation to avoid damaging the faces or elastomers. Others are “dry” seals that should not be lubricated.
  • Using the wrong type of lubricant (or lubricating a dry gas seal) can lead to material degradation or poor seal performance.

Over-Tightening or Under-Tightening Bolts

  • Over-tightening bolts can distort the seal housing or faces, while under-tightening can lead to improper compression and leaks.
  • Uneven tightening of bolts may create stress points, causing misalignment or seal failure.

Incorrect Seal Size

  • Using a seal that is too large or too small for the shaft or housing can result in poor fitment, leaks, or excessive wear.
  • Incorrect seal dimensions can also lead to instability during operation.

Failure to Follow Manufacturer Guidelines

  • Skipping or misinterpreting the manufacturer’s instructions, such as recommended assembly sequences or torque specifications, can cause installation errors.
  • Neglecting to check for specific environmental or operational requirements can also lead to issues.

Misalignment with Adjacent Components

  • Misalignment between the pump, motor, and coupling can create excessive vibrations, which can damage the seal over time.

Incorrect Handling of Seal Components

  • Mishandling seal parts, such as dropping or scratching the faces, can compromise their integrity.
  • Improper cleaning of seal components can leave residues that interfere with performance.

Elastomer Damage During Installation

  • Pinching, cutting, or improperly stretching O-rings, gaskets, or other elastomers can lead to leaks or reduced seal life.

Avoiding Failure

When installing a mechanical seal in any industrial context, it is important to follow best practices. These will vary case by case, but there are certain practices that are always wise to follow, including:

  • Always thoroughly inspect all components before assembly
  • Use the correct tools and adhere to manufacturer guidelines
  • Ensure all parts are clean, intact, and lubricated as required
  • Verify that the seal matches the application specifications

By following best practices and manufacturer guidelines, you can’t always guarantee a seal won’t fail. But it can guarantee that, if it does fail, it won’t be because of you.

Seals Gone Bad: The Most Common Causes of Mechanical Seal Failure

Mechanical seal failures often stem from errors during design, installation, operation, or maintenance. Each stage introduces unique risks that can compromise the seal’s integrity, causing leakage, exacerbating wear, and leading to operational inefficiencies, compromised performance, and, potentially, failure. Here is an overview of the most common errors and their direct effects:

DESIGN ERRORS

Incorrect Specification: Using a seal not suited to the operating environment (e.g., pressure, temperature, or chemical incompatibility)

RESULTS: Warping, puckering, coning, drying, cracking, or other degradation of the seal materials

Inadequate Face Loading: Improper design of the spring or other loading mechanisms

RESULTS: Pressure failure leading to leakage or uneven wear of the seal faces

Failure to Factor in Thermal Expansion: Ignoring the potential for thermal expansion in materials

RESULTS: Distortion of seal faces leading to misalignment and loss of sealing capability

Improper Seal Housing Design: Poorly designed housings where seal faces are not properly seated

RESULTS: Increased stress, leading to vibration and/or premature and uneven wear

INSTALLATION ERRORS

Misalignment: Failure to properly align the rotating and stationary parts of the seal

RESULTS: Vibration, uneven wear, rapid seal face deterioration.

Over-Tightening or Under-Tightening: Excessive or insufficient torque during assembly

RESULTS: Deformation of sealing components or improper contact of seal faces

Contamination During Installation: Introduction of dirt, debris, or grease to the seal faces or components.

RESULTS: Scoring or scratching of seal faces, increasing leakage

Improper Lubrication: Using insufficient or incompatible seal lubricant

RESULTS: Dry running and overheating of the seal faces, dissolution of seal face materials.

OPERATIONAL ERRORS

Dry Running: Operating sealing equipment without sufficient fluid to lubricate the seal faces.

RESULTS: Overheating and rapid wear or cracking of the seal.

Exceeding Design Limits: Running the pump or industrial equipment at higher speeds, temperatures, or pressures than the seal is rated for.

RESULTS: Thermal or mechanical stress leading to deformation or cracking.

Cavitation or Excessive Vibration: Caused by  equipment or process operation issues.

RESULTS: Misalignment, seal face chipping, or fatigue failure.

Improper Start-Up/Shutdown Procedures: Abrupt pressure changes can damage seals.

RESULTS: Seal faces separate or crack under the sudden load.

MAINTENANCE ERRORS

Neglecting Scheduled Maintenance: Failing to inspect and replace seals regularly, according to manufacturer recommendations.

RESULTS: Seal components wear out, causing any number of issues that can lead to immediate or eventual failure.

Using Non-OEM Parts: Substituting lower-quality parts that may not meet design specifications.

RESULTS: Poor fitment or compromised quality can cause premature wear, vibration, and incompatibility issues, leading to failure down the road.

Improper Cleaning: Using abrasive materials or harsh chemicals

RESULTS: Abrasion, chapping, and cracking of seal surfaces leading to performance degradation, leakage, and failure.

Inadequate Repairs: Merely replacing a failed seal without diagnosing or addressing the underlying cause of failure

Replacing seals without addressing the underlying problem (e.g., misalignment or vibration)

RESULTS: Repeated failures

Failure Prevention Vs. Failure Remediation

Mechanical seals, like most any other mechanical system, require a degree of maintenance in order to run at optimal efficiency and productivity. As such, there is a cost associated with keeping your seals in top shape. The cost for this can be considerable. However, when compared to the potential costs of seal failure, money spent on proper seal maintenance is well spent, indeed.

Consider the potential cost of shutting down operations completely while a seal is diagnosed and repaired or replaced. New parts may need to be sourced, and sometimes custom machined, out of materials which may be vulnerable to global supply chain issues.

It is potentially far less costly to adhere to a seal manufacturer’s recommended schedule of seal inspections and part replacements while observing best practices at every stage of your seal’s life, including:

Design Stage: Collaborate with seal manufacturers to ensure correct seal selection. Consider operating conditions like pressure, temperature, and fluid properties.

Installation Stage: Train technicians on proper installation practices. Follow OEM guidelines for alignment, torque, and lubrication.

Operational Stage: Avoid dry running by ensuring adequate lubrication. Operate equipment within the design limits. Monitor for unusual vibrations or noises.

Maintenance Stage: Establish a preventive maintenance schedule. Use high-quality, OEM-recommended components. Investigate and address root causes of failures.

Best Practices: Dry Gas Seal Maintenance

Dry gas seals are critical components in rotating equipment such as compressors, providing a reliable barrier against leaks with wear. A low-friction profile is a primary advantage of the gas seal, as it results in a drastic reduction in required maintenance. Nonetheless, ensuring you get optimal performance and maximum longevity from your dry gas seal requires you to perform routine inspections and preventive maintenance as recommended by the seal manufacturer. Every situation is unique, but best practices for dry gas seal maintenance should always touch on the following:

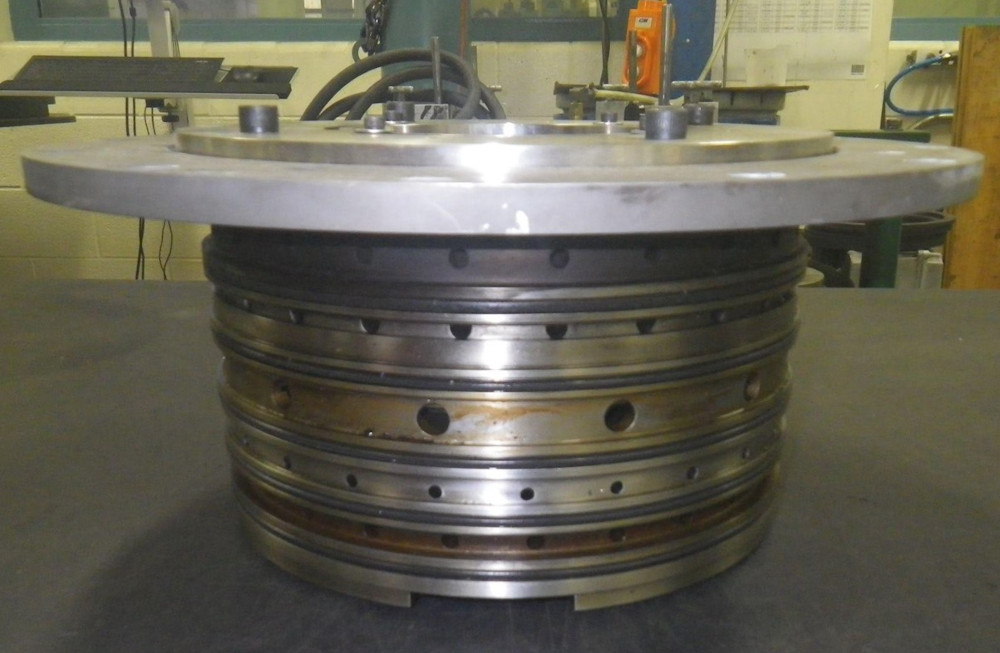

SSCY 10450 Dry Gas Seal

1. Regularly Inspecting and Monitoring

Any proactive dry gas seal maintenance program should include scheduled inspections and monitoring. The manufacturer of your dry gas seal should provide guidelines for recommended frequencies of inspection and part replacement based on the particulars of your seal and system. Follow that to the letter, and you should get the longest, most productive life out of your dry gas seal.

Seal performance should be monitored through pressure, temperature, and flow readings. Early detection of performance degradation can reveal issues before they can become real problems. Your system may incorporate condition-monitoring tools, such as vibration analysis and leak detection. Use those tools to assess the health of your seal without taking it apart, or even shutting it down.

To do a thorough inspection of your dry gas seal, however, you will need to disassemble it periodically. These are the main components of your dry gas seal that need to be assessed from time to time:

  • Seal Faces

Though dry gas seals are subjected to far less friction than other seal types, the seal faces do experience a degree of wear through normal operations. High pressure, and contamination are the main causes of seal face wear in dry gas seals. A compromised seal face can degrade efficiency and cause leaks. Periodic inspection and part replacement can practically eliminate the chance of seal face failure.

  • O-Rings or Elastomeric Seals

O-rings provide a secondary seal to help prevent gas leaks. Over time, they can degrade due to exposure to harsh gases or extreme temperature fluctuations. As O-rings age, they lose elasticity, harden, and eventually begin to crack and break down. Inspection and scheduled replacement are the best ways to prevent this from happening.

  • Seal Support System Components (e.g., Filters)

Dry gas seals should always have filtration systems to ensure that the gas entering the seal is free of contaminants. These filters can become clogged or damaged, allowing debris into the seal area where it can accelerate wear. The filtration elements should be inspected and replaced on a regular basis, as recommended by the seal manufacturer.

  • Rotating and Stationary Components

Some dry gas seal designs incorporate small springs or bearings to keep the seal faces in close contact. These parts can fatigue or wear out over time, resulting in misalignment or reducing the force needed to maintain a proper seal. This can lead to seal face separation or contact failure.

  • Dynamic Gaskets and Bellows

Pressure changes, extreme temperature changes, and vibration can all contribute to mechanical stress on gaskets and bellows, causing them to wear and crack over time. These parts need replacing before they have a chance to degrade seal performance.

  • Labyrinth Seals

These secondary seals are designed to help prevent contamination from external sources. They do not rely on direct contact with moving parts, so they experience minimal wear, but they can be compromised over time by harsh environments, extreme temperature or pressure changes, or the presence of dust, dirt, or other abrasive substances. Monitoring and inspecting labyrinth seals should be part of the ongoing maintenance program.

  • Gas Supply System Components

These parts control the pressure and flow of the gas entering the seal. They can become blocked, damaged, or corroded, leading to poor seal performance and gas starvation. Again, optimal seal health and performance over a long working life can be assured by the regular inspection and periodic replacement of these parts.

2. Maintaining Cleanliness

Contaminants are the primary enemy of dry gas seals. Ensure that the gas entering the seal is free of dirt, dust, and moisture. Implement high-quality filtration systems to keep impurities out of the seal gas supply. Regularly inspecting and replacing filters as specified by the seal manufacturer is the best way to avoid compromises to performance.

3. Monitoring Gas Supply

The quality of the gas supply is critical. A dry, clean, and consistent gas supply ensures that the seals operate within design parameters. Moisture in the gas can lead to condensation, increasing wear and reducing the seal’s effectiveness. Monitor gas dew points and maintain systems to prevent moisture from entering the seal area.

4. Checking Alignment

Misalignment of the rotor can result in uneven wear and potential seal failure. Regularly check and adjust the alignment of rotating shafts and components. Misalignment can cause excessive vibrations, which deteriorate seal performance and lead to premature failure.

5. Controlling Operating Conditions

Ensure that the seal operates within the manufacturer’s recommended pressure and temperature limits. Operating at extremes or beyond design specifications can reduce the lifespan of the seal. Keep a close eye on both dynamic and static conditions, as pressure fluctuations or thermal shocks can stress the seal components.

6. Purging Seal Gas

Performing periodic seal gas purges helps eliminate contaminants that may have accumulated in the seal chamber. This process can extend the life of the seal by maintaining a clean environment around it. Always follow the manufacturer’s guidelines when performing seal gas purges.

7. Training Personnel

Improper handling of seals during inspections or repairs can lead to damage. Proper training of maintenance personnel is essential. Staff should be well-versed in the equipment’s operational requirements and maintenance procedures.

If All Else Fails, Ask an Expert

Again, the best thing you can do to ensure the long, productive life of your gas seal is to follow the manufacturer’s advice. As a prominent developer and manufacturer of mechanical seals for over 60 years, Stein Seal Industrial has literally written the book on dry gas seal maintenance many times over. We have provided this article as a general overview of best practices to follow for the maintenance of any dry gas seal. But the particulars of your seal, and the parameters of your operation, will determine the frequency of inspections and part replacements needed. Follow the guidelines provided by your seal manufacturer for long-term success. Alternatively, consult with an expert, like Stein Seal Industrial, to have your seal and system analyzed and determine the best approach.

The Benefits of Proper Seal Repair and Maintenance

Mechanical seals are complex, heavily engineered devices that play a critical role in countless operations throughout modern industry. By preventing leaks in pumps, compressors, and other equipment that handle fluids. in industries ranging from oil and gas to chemical processing and water treatment, mechanical seals are indispensable for maintaining the integrity of equipment and ensuring safe, efficient processes of vital importance to daily life as we know it. However, like all mechanical components, seals are subject to wear and tear over time just through normal use. With proper maintenance, the life of a critical mechanical seal can be extended.  Fortunately, as seal technology has advanced, so has our ability to accurately predict the lifespans of their individual components. Armed with this insight, a maintenance and repair schedule can be generated to ensure vulnerable components are renewed or replaced before their degradation advances to the point where they can compromise seal safety and impair performance. Adhering to the seal manufacturer’s recommended schedule of preventive maintenance is essential to avoiding costly breakdowns, maximizing equipment life, and maintaining optimal efficiency.

Five Reasons to Perform Preventive Maintenance

Mechanical seals are essential. Without them, much of modern industry and infrastructure would not be possible. They are also expensive, often costing more than any other component in the systems they serve. That alone would seem reason enough to keep seals maintained and running in optimal condition. But there are many additional reasons to do so, including:

Avoiding Unplanned Downtime

In any industrial operation, unexpected shut-downs can hit hard on the bottom line. A failure in a critical seal assembly can cripple your operation, leaving you dead in the water until a repair can be made. This can disrupt production and create problems for your customers down the line. Preventive maintenance allows for the early detection of issues before they escalate into full-blown failures. By regularly inspecting and maintaining mechanical seals, technicians can identify early warning signs such as minor leaks, abnormal vibrations, or changes in operating temperature. Addressing these issues proactively helps avoid unexpected equipment failures and costly shutdowns.

Extending Equipment Life

Mechanical seals are often subject to various stresses, including extreme temperature and pressure fluctuations, and exposure to harsh chemicals. Over time, these factors can break down sealing elements, causing them to degrade and, eventually, to fail. Regular maintenance, including lubrication, alignment adjustment, and periodic replacement of certain parts, can help preserve the seal in optimal condition while preventing further systemic damage that could result from seal failure.

Enhancing Operational Efficiency

The efficiency of pumps, compressors, and other machinery directly affects the viability and performance of industrial operations. A mechanical seal that is not functioning properly can cause inefficiencies such as leaks or increased energy consumption. Seals that are properly maintained to manufacturer specifications should perform at optimal levels. This is especially important in industries where precise fluid handling is critical, such as in chemical processing or food and beverage manufacturing. Preventive maintenance ensures that seals are functioning properly, minimizing fluid loss and energy waste.

Promoting Workplace Safety

Leaking fluids or gases in an industrial context can pose serious risks to personnel and the environment. A failure in a mechanical seal can lead to the release of dangerous chemicals, creating potential safety hazards. Regular maintenance helps to mitigate these risks by ensuring that seals are in good condition and working as intended. This proactive approach not only protects employees from exposure to harmful substances, but also helps industries comply with safety regulations and environmental standards. Preventive maintenance reduces the likelihood of accidents and improves the overall safety of the workplace.

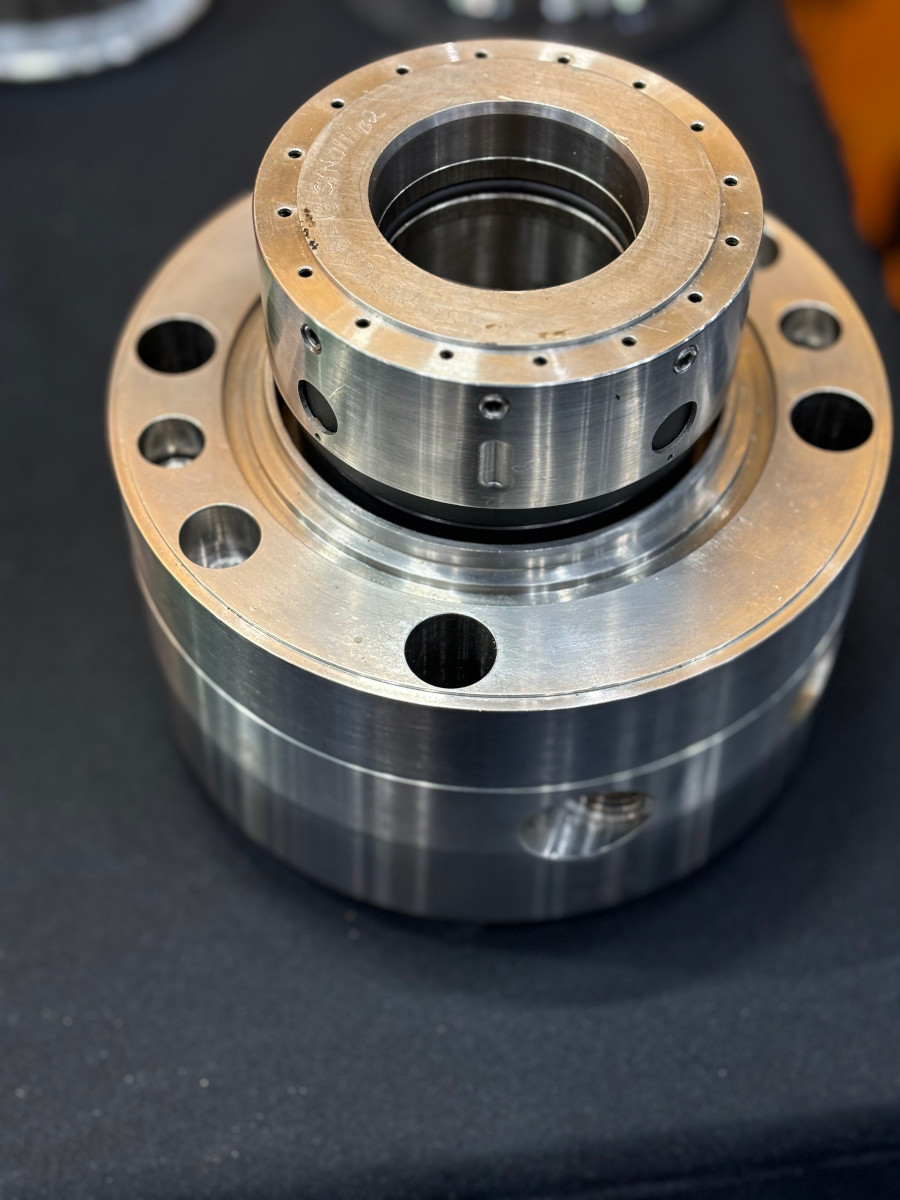

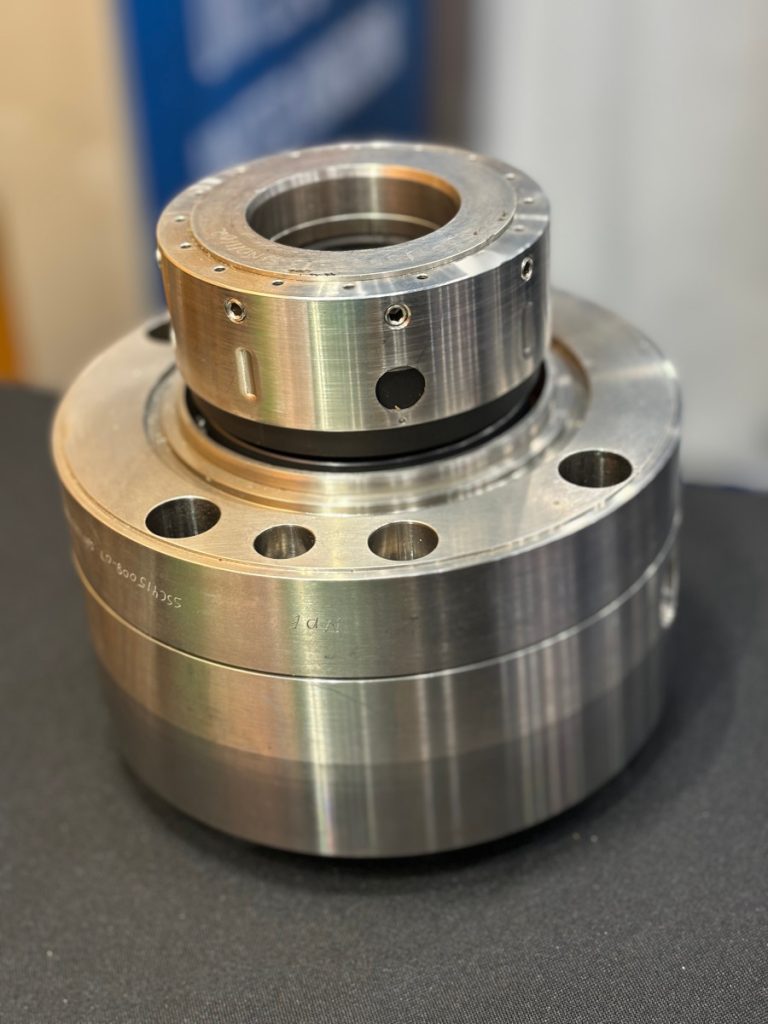

SSCY 10419 Dry Gas Seal (Before Repair) SSCY 10419 Dry Gas Seal (After Repair)

SSCY 10419 Dry Gas Seal Repair

Scheduled Maintenance Vs Emergency Repairs

While some business owners view scheduled maintenance as an optional expense, it is generally far more cost-effective to maintain equipment than to repair or replace it, especially in a crisis. Emergency repairs are often priced at a premium. That unplanned expense can be crippling, particularly when combined with lost revenues due to an emergency shutdown. With scheduled routine maintenance, companies can plan ahead to mitigate the repercussions of any necessary shutdown, while effectively eliminating the chance of catastrophic failure down the road.

Elements Subject to Wear and Tear

Depending on the construction of a particular seal, the parts most prone to deterioration through normal use can vary. Here are some of the parts most likely to be adversely affected.

SEAL FACES

Typically made from materials like carbon, silicon carbide, and tungsten carbide, seal faces are subjected to constant friction and high pressure, leading to wear and possible leakage.

ELASTOMERIC COMPONENTS

Elastomeric elements like gaskets or O-rings are prone to hardening, cracking, or swelling due to heat, pressure, and exposure to chemicals.

SPRINGS

Spring mechanisms in mechanical seals provide the necessary pressure to hold sealing faces together, but can corrode or lose tension over time.

METAL BELLOWS

The relatively delicate folds of the metal bellows are susceptible to fatigue, cracking, and corrosion, especially in high-temperature or corrosive environments.

Real World Examples

Here are some examples of common mechanical seals along with a rundown of their components most prone to failure.

PUSHER SEALS

Common Applications: Pumps and compressors.

Wear Components: The dynamic O-rings or gaskets in pusher seals move axially along the shaft during operation. This movement causes wear and can lead to leaks over time. The seal faces, typically made of carbon, ceramic, or tungsten carbide, also degrade due to friction and pressure.

BELLOWS SEALS

Common Applications: High-temperature or corrosive fluid handling, such as in chemical processing.

Wear Components: Bellows, which are metal or elastomeric, experience stress and can crack or degrade. The seal faces in these seals are also vulnerable to wear from friction, causing leaks if not maintained.

CARTRIDGE SEALS

Common Applications: Centrifugal pumps, agitators, and mixers in the oil and gas, chemical, and food industries.

Wear Components: The sealing faces made of carbon, silicon carbide, or ceramic suffer from wear due to constant contact and the potential for abrasive materials in the fluid stream. Elastomer O-rings or gaskets inside the cartridge are also susceptible to degradation.

SPLIT SEALS

Common Applications: Large pumps in industries like wastewater treatment or mining.

Wear Components: The split design allows for easy installation and removal, but the split nature makes the sealing surfaces more vulnerable to misalignment or wear, leading to fluid leakage over time.

GAS SEALS

Common Applications: High-speed compressors in oil and gas, chemical, and petrochemical industries.

Wear Components: Gas seals operate with extremely thin gas films between sealing faces, which minimize friction, but any contamination or misalignment can cause wear on the sealing faces, leading to reduced sealing efficiency.

Potential Repercussions of Failing to Maintain Seals

Some common problems that can occur in seals when not adequately maintained. Any of these issues can be easily avoided through maintenance. Conversely, most of them can be difficult to rectify once damage has set in.

INCREASED LEAKAGE

As seals wear, they lose their ability to contain fluids, leading to leakage. In pumps, this leakage can cause fluid loss, equipment damage, and safety hazards.

ENVIRONMENTAL CONTAMINATION

Leaking seals can release hazardous fluids or gases, contaminating the environment and leading to costly fines and cleanup.

EQUIPMENT FAILURE

Seals protect bearings and other internal components from fluid ingress. If a seal fails, it can lead to internal corrosion, overheating, and eventual equipment breakdown.

DECREASED EFFICIENCY

Worn seals lead to inefficient equipment operation, increasing power consumption and reducing throughput.

HIGHER MAINTENANCE COSTS

Delaying seal maintenance leads to more frequent seal replacements, downtime, and potentially larger repairs or replacements for the affected equipment.

Spare Parts Held in Reserve

Material availability, production capacity fluctuations, and the challenges of a globally sourced supply chain significantly affect manufacturing capacity. It is recommended to keep spares of critical seals and sealing components in case of sudden catastrophic failure. Supply chains cannot always be relied upon, and certain materials can be difficult or even impossible to obtain on short notice. It is not uncommon for raw materials that once required four to six weeks to take sixty to one hundred and twenty days for delivery now.

High-Performance Type C Contacting API 682 Seals for Pharmaceutical Manufacturing

In pharmaceutical manufacturing, maintaining sterility is critical to preventing contamination. Mixer seals play a vital role in ensuring the integrity of the process. Among the different types of seals, “high-performance Type C contacting API 682” seals incorporate multiple innovations that make them particularly effective for mixing pharmaceutical ingredients.

Key Features

Type C contacting wet API 682 seals for pharmaceutical mixers incorporate several advanced features to enhance their performance in this context:

  • Contacting Design: allows for continuous contact between seal faces in the presence of lubricating fluid, ensuring controlled leakage rate and maintaining a sterile environment.
  • Metallic Bellows: These seals feature bellows made of metal, replacing the typical elastomeric bellows and thereby eliminating potential sources of contamination while offering superior mechanical strength.
  • Double-Bellows Configuration: This innovation provides redundancy and added safety, ensuring that even if one bellows fails, the other can maintain the seal integrity.
  • Enhanced Heat Dissipation: Type C contacting seals are designed with advanced materials and coatings that improve heat dissipation, reducing thermal expansion and enhancing seal life.
  • Self-Cleaning Features: Some Type C seals are equipped with self-cleaning mechanisms that prevent the accumulation of particulate matter, which is crucial in maintaining sterility.

Differences Between Arrangement 1, 2, and 3 of Type C Bellows Seals

API 682 categorizes mechanical seals into different arrangements based on their complexity and the level of containment they provide. Innovations such as double-bellows configurations, enhanced heat dissipation, and self-cleaning features make these seals ideal for the stringent demands of pharmaceutical applications.

Understanding the differences between Arrangement 1, 2, and 3 further helps in selecting the appropriate seal configuration, ensuring both compliance and optimal performance in pharmaceutical mixers.

  • Arrangement 1: This is a single contacting cartridge seal with a bushing, Arrangement 1 is the simplest and least expensive type of API 682, offering limited protection against leakage. In pharmaceutical applications, it is suitable for non-toxic, non-hazardous fluids where minimal leakage is acceptable.
  • Arrangement 2: This unpressurized dual-seal configuration consists of a primary and a secondary seal. It offers enhanced protection by maintaining a buffer fluid at a lower pressure than the process fluid. This arrangement is ideal for moderately hazardous or toxic fluids, providing a balance between cost and safety.
  • Arrangement 3: Another dual-seal arrangement, Arrangement 3 provides the highest level of containment. The barrier fluid is maintained at a higher pressure than the process fluid, ensuring zero leakage to the environment. This makes Arrangement 3 perfect for highly hazardous and toxic fluids where zero contamination is the top priority.

Stein Seal: Innovation at Work

As an influential player in the mechanical seal industry, Stein Seal Industrial excels at developing custom-engineered seals for specialized applications like pharmaceutical manufacturing. Our contributions to Type C contacting API 682 seals have been notable.

Custom-Engineered Solutions

Stein Seal specializes in custom-engineered, application-specific mechanical seals. For pharmaceutical applications, we offer Type C contacting seals that are designed to provide superior performance in highly controlled and sterile environments. Our focus on customized designs helps in optimizing seal performance for particular process conditions, such as viscosity, temperature, and pressure.

Advanced Material Science

Stein Seal has invested heavily in material science to develop seals that can withstand the demanding conditions of pharmaceutical manufacturing. Using advanced materials like high-purity silicon carbide, tungsten carbide, and carbon graphite for seal faces, our seals provide excellent wear resistance, thermal conductivity, and chemical compatibility. These materials are crucial for reducing friction, minimizing wear, and extending the life of the seals.

Innovative Seal Designs

Stein has pioneered various innovative seal designs that enhance the reliability and functionality of Type C contacting API 682 seals. Our seals incorporate features like optimized flow paths for flush fluids, enhanced cooling mechanisms, and robust bellows configurations that improve flexibility and reduce stress. These innovations are essential for maintaining seal integrity in critical applications, such as mixing and blending operations in pharmaceutical processes.

Focus on Regulatory Compliance

Compliance with strict industry standards like API 682, ASME, and FDA regulations is vital for pharmaceutical manufacturers, where maintaining sterility, preventing contamination, and ensuring safety are top priorities. Stein seals are designed to minimize leakage, resist corrosion, and operate reliably under various pressure and temperature conditions.

Enhanced Seal Testing and Validation

Stein is known industry-wide for our rigorous testing and validation protocols, ensuring our seals meet the highest performance and reliability standards. This includes extensive lab testing, field trials, and computational fluid dynamics (CFD) simulations to optimize seal designs for specific applications. Our commitment to quality assurance results in highly dependable products that can be relied upon for critical pharmaceutical applications.

Talkin’ ‘Bout a Revolution: Steam Seal Tech Keeps the Turbines Turning for Greener Energy

For most of the history of electrical power generation, the objective has been to find ever-more efficient ways of producing and harnessing steam in order to move a turbine connected to a generator that could turn the kinetic energy of the rotating turbine into a steady electrical current.

Central to the advancements in steam turbine technology is the use of circumferential seals. These seals represent a significant leap forward, taking existing methods of sealing moving mechanical parts against moisture and reimagining them with materials tailored to the demanding environments of steam turbines. Focusing on seals, it becomes clear how these critical mechanical components can enhance the performance, durability, and efficiency of steam-driven turbines and the power-generation systems they serve.

The Challenge of the Circumferential Seal

Sealing any mechanical component against leakage of liquids or gases can be a challenge. But when those mechanical components are in motion and the substances involved are under pressure, things get even more complicated. Stepping it up yet another notch on the complexity scale is the introduction of harsh chemicals and intense working conditions. Steam-driven turbines present a sort of “perfect storm” to the engineer. Steam seals are the mechanical components designed to handle all of this, and they are integral to the viability of a great many forms of contemporary power production.

Circumferential seals are specialized components designed to maintain a tight seal around the rotating parts of a steam turbine. They prevent steam leakage, ensuring that the maximum amount of energy is transferred from the steam to the turbine blades. These seals are crucial for maintaining the efficiency and reliability of steam turbines.

Key Design Features of Circumferential Seals

The design of circumferential seals incorporates several key features to optimize their performance in steam turbines:

Sealing Effectiveness : The primary function of circumferential seals is to create a tight seal that minimizes steam leakage. This is achieved through precise engineering that ensures a perfect fit around the turbine’s rotating parts.

Material Selection : The materials used in circumferential seals must withstand high temperatures and pressures without degrading. Advanced materials like superalloys and specialized polymers are commonly used to ensure durability and longevity.

Thermal and Mechanical Stability : Circumferential seals are designed to maintain their integrity under the thermal and mechanical stresses typical in steam turbines. This includes the ability to handle thermal expansion and contraction without compromising the seal.

Specialized Materials for Steam Environments

As already described, the contexts for usage of steam seals require specially engineered seals made of materials that fortify them against the high temperatures and high pressure you find in the steam environment. These materials include:

Superalloys

These materials, such as Inconel and Hastelloy, are designed to maintain their properties at high temperatures, providing excellent resistance to thermal creep and oxidation.

High-Performance Polymers

Polymers like PTFE (Polytetrafluoroethylene) and PEEK (Polyether ether ketone) are used for their excellent thermal and chemical resistance, ensuring the seals remain effective over long periods.

Ceramic Coatings

Applying ceramic coatings to circumferential seals can enhance their thermal resistance and durability, offering additional protection against the high temperatures and pressures within a steam turbine.

Benefits of Circumferential Seals in Steam Turbines

The use of circumferential seals in steam turbines provides several significant advantages:

Enhanced Efficiency

By preventing steam leakage, circumferential seals ensure that more of the steam’s thermal energy is converted into mechanical work, increasing the turbine’s overall efficiency.

Increased Durability

The advanced materials and precise engineering of circumferential seals reduce wear and tear, extending the operational life of the turbine and lowering maintenance costs.

Improved Reliability

With better sealing and reduced leakage, steam turbines equipped with circumferential seals are less likely to experience failures, ensuring more reliable power generation.

Cost Savings

The combination of higher efficiency, increased durability, and improved reliability translates into significant cost savings over the turbine’s lifecycle, making circumferential seals a wise investment for power generation facilities.

Steam Seals from Stein Seal

Circumferential seals play a pivotal role in the advancement of steam turbine technology. By leveraging specialized materials and precise engineering, these seals enhance the performance, durability, and efficiency of steam turbines. As Stein Seal continues to innovate and refine these critical components, the future of steam power generation looks brighter and more sustainable than ever.

Many of Stein’s innovations are already hard at work, making power production more sustainable, affordable, and reliable in a number of different ways. Here are a couple of our more recent innovations:

Stein’s Turbine Shaft Seals are essential to geothermal power production, where they are installed around the rotating turbine shaft to prevent steam and fluid leakage and maintain critical pressure differential.

Our Labyrinth Seal features a complex arrangement of internal fins and teeth that are effective at preventing leakage and infiltration, even under high pressure. This makes the labyrinth seal very useful in geothermal power production where they are installed around in various components including steam turbines and pumps.

Unlocking New Possibilities with Stein Seal Standard Circumferential Seals

For over 65 years, Stein Seal Company has been at the forefront of designing, testing, and manufacturing custom-designed seals and precision components for critical applications. Our journey has been defined by our commitment to quality, innovation, and performance, serving industries ranging from military and commercial aviation to power generation and marine. Today, we are excited to announce a significant addition to our product line: Stein Seal Standard Circumferential Seals.

What Is a Standard Circumferential Seal?

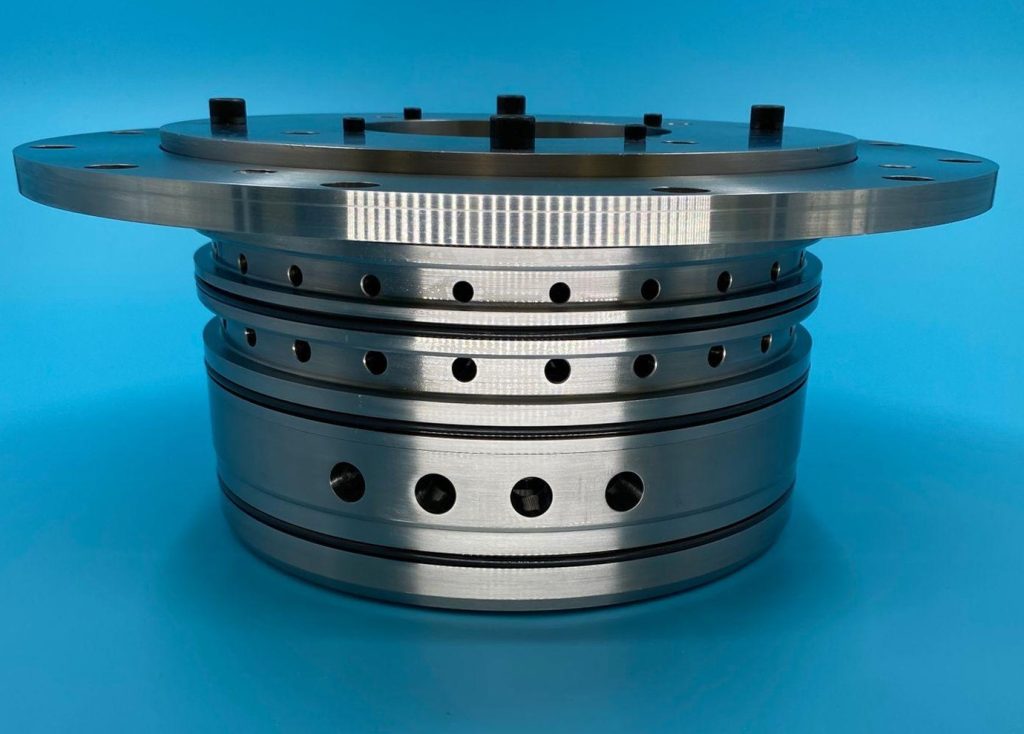

Our standard circumferential seals operate using air pressure differential and spring loading to collapse a segmented carbon seal ring onto a rotating shaft or other rotating seal surface such as a runner. These seals are specifically designed to prevent leakage between an oil mist and dry air environments, particularly when dealing with high shaft speeds, high temperatures, or significant axial shaft movement.

Key Features and Benefits

High-Temperature and Speed Resilience

One of the standout features of our standard circumferential seals is their ability to withstand extreme conditions. Rated for a maximum carbon operating temperature of 600°F (315.6°C) and capable of handling shaft speeds ranging from 20,000 to 30,000 RPM, these seals are built to perform in the most demanding environments. This makes them ideal for applications where reliability and durability are paramount.

Uniform Components for Consistent Quality

Regardless of the size, all our standard circumferential seals comprise the same high-quality subcomponents. These materials have been meticulously selected based on historical performance data and best practices developed from decades of engineering and manufacturing the world’s most advanced custom seal products. Part uniformity ensures consistent performance across different sizes and applications.

Standard Sizes and Custom Solutions

Our standard circumferential seals come in various sizes based on their sealing diameter. Detailed information about available sizes and their respective recommended installation bore diameters can be found in our product catalog. Additionally, we provide performance data, including seal leakage performance versus delta pressure at maximum operating temperatures.

While our standard seals cover a wide range of applications, we understand that some projects require unique solutions. Stein Seal Company also offers custom seal products for applications requiring sizes ranging from 1 to 30+ inches. Our team is ready to work with you to develop a solution that meets your specific needs.

Put Your Trust in Stein

Choosing Stein Seal means choosing a partner with decades of experience and a proven track record of developing innovative seal technologies used around the world in countless industrial applications. Our seals are not just products; they are solutions designed to enhance the performance and reliability of your equipment. In aerospace, power generation, marine industries, and many other related fields, our standard circumferential seals provide the reliability and efficiency needed to keep critical operations running smoothly.

For more information on our standard circumferential seals or to inquire about custom solutions, please visit steinsealind.com or contact our team directly at sales@steinseal.com. Experience the Stein Seal difference today and elevate your sealing solutions to the next level.

By exploring the specific features and benefits of our new standard circumferential seals, we aim to provide you with a comprehensive understanding of how these products can meet your needs and exceed your expectations. Turn to Stein Seal for all your sealing solutions.

Load More
